Product Description
HS3008 series is an economical controller-structure network storage for large-scale project with high demands on data safety. It supports JBOD extension to expand the storage space with mini-SAS interface, providing large storage capacity for recordings.

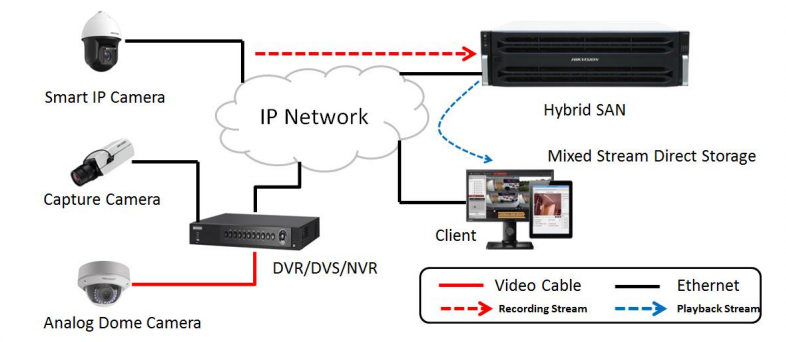

Typical Application
Economical and Stable Hardware Platform
● Modular and no-cable design and SBB 2.0 structure.
● 64-bit multi-core processor.
● 4 GB high-speed cache.
● Two 1000M network interfaces.
● 6G SAS high-speed transmission channel.
● Redundant design for key modules.
HDD Detection and Repair/RAID Optimization
● Detection before operation.
● Detection in operation.
● Fault reparation.
● RAID 0, 1, 3, 5, 6, 10, 50, and VRAID.
● Global and local hot spare.
● Supports building RAID with surveillance-class HDD.
● Quick RAID building.
● Capability of cascading up to two storage enclosures
behind a single SAS port.Advanced Data Protection
● Synchronous backup of key information in system disk and HDD.
● RAID-based tamper-proof data technology.
● Auto data synchronization between devices.
Energy Efficient
● CPU load balance
● Auto fan tuning
● HDD sleeping
User-Friendly UI
● Quick configuration.
● Various alarm management.
● SADP protocol supported.
● SNMP supported.
Surveillance-Specialized Stream Media Direct Storage (Direct Streaming Mode)
● Space pre-allocation strategy.
● Direct storage for video and picture streams.
● Supports direct IP camera/DVR/NVR streaming and recording.
● Supports camera access through RTSP, ONVIF, and PSIA protocol.
● Supports alarm/scheduled/manual recording.
● N+1 technology.
● Automatic network replenishment (ANR), timely
uploading, and video loss alarm.
● Lock key videos.
● VRAID data protection.
● Supports both Direct Streaming Mode and IPSAN Mode.
● Search, play, and download videos by video type or video time.
|
Model |
HS3008.16 |
HS3008.24 |
|
|
Performance |
Direct Streaming Mode: video (2 Mbps) + picture |
320-ch recording + playback |
|
|
|
IPSAN |
180-ch recording + playback |
|
|
Controller |
Processor |
One controller (64-bit multi-core processor) |
Dual controller (64-bit multi-core processor) |
|
|
Cache |
4 GB (extendable to 8 GB) |
Each controller :4 GB (extendable to 32 GB) |
|
HDD |
HDD slot |
16 |
24 |
|
|
Interface/capacity |
SATA/1TB, 2TB, 3TB, 4TB, 6TB |
SAS, NL-SAS/1TB, 2TB, 3TB, 4TB, 6TB |
|
|
Hot-swapping |
Supported |
|
|
|
RAID |
RAID0, 1, 3, 5, 6, 10, 50, VRAID, JBOD,Hot-spare |
RAID0, 1, 3, 5, 6, 10, 50, JBOD, Hot-spare |
|
Network |
Protocol |
iSCSI, RTSP, ONVIF, PSIA |
|
|
Interfaces |
Data network interface |
2 (extendable to 6), 1000M Ethernet interface. (10GbE is optional.) |
Each controller: 4, 1000M Ethernet interface. (8 x 1GbE, 2 x 10GbE, or 2 x 8GbF is extendable) |
|
|
Management network interface |
1, 100M Ethernet interface |
|
|
|
MiniSAS interface |
Supported |
|
|
|
COM |
2: 1 for Hyper Terminal, 1 for mobile alarm or UPS |
Each controller: 2, 1 for Hyper Terminal, 1 for UPS |
|
|
USB |
2 |
2 per controller |
|
|
VGA |
1 |
None |
|
General |
Power supply |
Gold-metal redundant power supply |
|
|
|
Consumption (with HDDs) |
Working: ≤ 255 W (870 BTU with 16 HDDs) Rated: ≤ 550 W |
Working: ≤ 507 W (1729 BTU with 24 HDDs) Rated: ≤ 800 W |
|
|
Environment temperature |
Working: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F) |
Working: +5 °C to +40 °C (41 °F to 104 °F) Storing: -40 °C to +55 °C (-40 °F to 131 °F) |
|
|
Environment humidity |
Working: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen) |
|
|
|
Chassis |
3U (19-inch height) |
4U (19-inch height) |
|
|
Dimensions (W × H × D) |
440 x 132 x 495 mm (17.3 x 5.2 x 19.5 in) |
447 x 172 x 550 mm (17.6 x 6.8 x 21.7 in) |
|
|
Weight (without HDDs) |
≤ 20 Kg (44.1 lb) |
≤ 33.5 Kg (73.9 lb) |
