Dimension

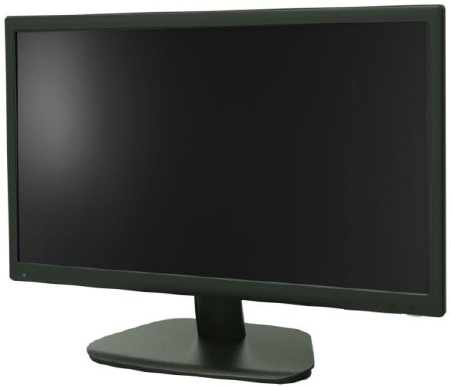

Model ：HS3301
Model ：HS3302
● Led monitor, with rich interface for input
● 16：9
● B type can console mounted in control table
● Long life
● Can use for analogy CCTV system and network CCTV system
● Clear quality, small distortion
|
MODEL |
HS3301 |
HS3302 |
|
|
|
|
|
System Configuration |
||
|
TYPE |
LED |
LED |
|
Screen size |
19"/22"（can 't console mount） |
19"/22"/27"（can console mount） |
|
Max resolution |
1920x1080 |
|
|
Brightness |
250cd/m2 |
|
|
Contrast ratio |
1000：1 |
|
|
Aspect ratio |
16：9 |
|
|
Viewing angle |
（H/V) 170°/160° |
|
|
Display color |
16.7 mission |
|
|
Response time |
3ms |
5ms |
|
Video system |
NTSC/PAL |
|
Interface |
||
|
Connector |
1-BNC |
4-BNC |
|
VGA |
1 |
|
|
D-sub |
1 |
|
|
HDMI |
1 |
|
|
Audio in |
2-RCA |
|
|
Audio output |
Speaker ，2- 2W |
Speaker ，2- 1W |
|
Functions |
VESA DPM |
|
|
Languages |
English, Spanish, French, German, Italian, Portuguese, Russian, Swedish, Turkish, Thai, Chinese, Japanese, Korean, Dutch , Danish , Arabic |
|
|
Input voltage |
DC12V |
AC100~240V(50/60HZ) |
|
Power consumption |
Max 30W |
Max 24W |
|
Working temperture |
0℃～40℃ |
|
|
Working humidity |
10%～95% |
20%～90% |
|
Dimension （with bracket） |
|
W x H x D （515mmx391.8mmx217.4mm) |
|
Dimension （without bracket） |
W x H x D （511mmx313mmx45mm) |
W x H x D （515mmx316mmx59.9mm) |
|
Weight |
3.2Kg |
5.18Kg |
|
LCD protection glass |
Yes |
|
|
Bracket |
Desk mount bracket Wall mount and ceiling mount bracket for option |
Desk mount bracket Wall/ ceiling mount bracket and console mount bracket for option |
|
VESA mounts interface |
100mmx100mm |
