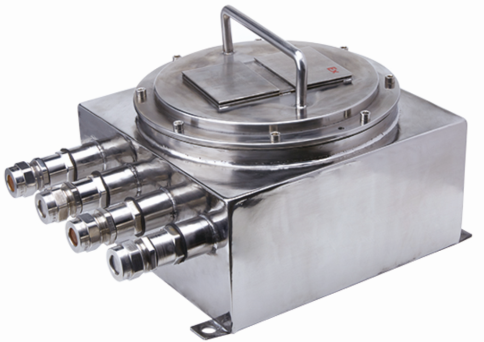

Ex CONTROL BOX SERIES
- The housing is welded with stainless steel plate and has corrosion resistance, impact resistance and stainless steel fasteners.
- Number of internal terminals,cables outlet direction, quantity and thread specification can be customized according to special requirement.
- The sealing strip of the shell and shell cover is high temperature resistant and anti-aging silicon rubber.
- The sealing property is good and not easy to leak. If the Ex box used cable wiring of explosion - proof bobbin, need to equipped another gland.
|
Model |
HS0108 |
|
Explosion Protection Mark |
Ex d ⅡC T6 Gb /Ex tD A21 IP68 T80℃ |
|
Proof Number |
CNEx17.3048 |
|
Product Standards |
Q/320684HMC004-2017 |
|
Product Material |
316L stainless steel |
|
Operating Voltage (V) |
AC220V |
|
Working Current (I) |
3000mA |
|
Power |
110w |
|
Outlet specifications |
M25*1.5 |
|
Number of outlet ports |
4 |
|
Dimensions |
267*267*204mm（L*W*H） |
|
Temperature Range |
-40℃～+60℃ |
|
Atmospheric Pressure |
80KPa～106KPa |
|
Relative Humidity |
Not more than 95% (no condensation) |
|
Installation Method |
Dressing, wall mounted |
|
Weight |
About 10Kg |
