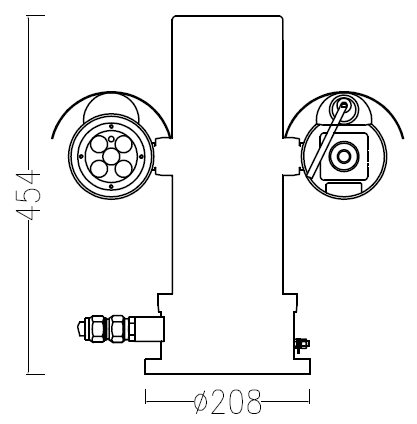

Product Size
Installation Size

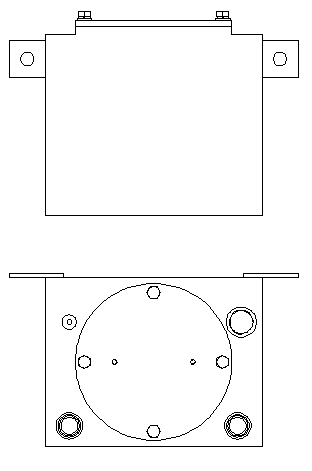

Mounting brackets
|
|
Model: HS0141 Material: Stainless steel spray Installation: wall mounted Weight: about 4KG Size:( W*H*D )208mm*180mm*538mm |
Attachment
- Highest level explosion-proof certification, applicable to a variety of dangerous places.
- 316L stainless steel material manufacturing, suitable for strong corrosive environment
- IP68 waterproof, dustproof design, suitable for indoor and outdoor installation, round-the-clock use
- Support network or analog camera, the maximum resolution 1920X1080, clear and fine image
- Turbine worm drive structure design, precision stepping motor drive, sensitive response, smooth rotating
- Horizontal continuous rotate 360 °, vertical - 90 ° ~ 90 °, no monitoring blind area
- Horizontal rotation speed 15°/s~5°/s , vertical rotation speed 15°/s~5°/s
- Supports power failure memory, supports 256 presets
- Support automatic cruise, each can set more presets, time interval can be set
- The window using high - intensity , light transmission, optical quality explosion-proof glass
- Intelligent wiper function, the wipers adopt windshield wipers, good weather resistance, easy to replace
- High efficient infrared/white light array lamp, low heat energy, low power consumption, infrared distance up to 100 meters
- Day and night to be used, the light is too low to automatically turn on infrared light, even if the light is very poor still get high quality image
- Optical zoom, focusing fast and accurate
- Fully functional: support user management and PTZ control
- Modular circuit design ,support some common protocols such as pelco-d, pelco-p or mainstream network protocols, such as ONVIF
- Support IO interface to connect other peripherals, 10/100m Ethernet interface; It also supports BNC coaxial and RS485 interfaces
- Low power consumption, small power loss, stainless steel shell heat faster, long time uninterrupted work
|
Model |
|
|
Model |
HS0101 |
|
Explosion-Proof Mark |
Ex d II C T6 Gb /Ex tD A21 IP68 T80℃ |
|
Explosion Proof Certificate Number |
CNEx17.3051X |
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Signal System |
PAL/NTSC |
|
Minimum Illumination |
color 0.05lux@1.6 |
|
Day & Night |
ICR |
|
WDR |
more than 52dB |
|
Shutter Time |
1/1 s to 1/30,000 s |
|
Resolution |
50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080) 50HZ:25fps(1280x720) 60HZ:30fps(1280x720) |
|
Lens |
|
|
Focal Length |
4.7-94mm，20 x optical zoom |
|
Aperture Range |
F1.6-F3.5 |
|
Angle of View |
61.4-2.9°(Wide-Tele) |
|
Minimum Working Distance |
10-1500mm(Wide-Tele) |
|
Zoom Speed |
Approx. 2.7s (Optical Lens, Wide-Tele) |
|
Focus Mode |
Auto focus / manual focus /once focus |
|
Day & Night |
Automatic / color / black and white |
|
PTZ function |
|
|
Rotation Range |
Pan：360°endless Tilt：-90°~90° |
|
Rotation Speed |
Pan：15°/s~5°/s Tilt：15°/s~5°/s |
|
Power Loss Recovery |
Support |
|
Number of Preset |
256 |
|
Communication Protocol |
Support ONVIF and other common protocols |
|
Wipers |
Smart wipers |
|
Infrared |
|
|
Infrared Distance |
100m |
|
Infrared Wave length |
850nm |
|
Infrared Switch |
Illumination is less than 0Lux automatically turns on |
|
General Specification |
|
|
Communication Interface |
1 RJ45 10M / 100M adaptive Ethernet port |
|
Temperature Range |
-40℃～60℃ |
|
Relative Humidity |
Less than 95%(+25°C) |
|
Atmospheric Pressure |
86kpa～106kpa |
|
Structure Type |
The integrated structure is not connected outside, the inlet does not rotate |
|
Product Material |
316L Stainless steel |
|
Power Supply |
AC85V-265V |
|
Power Consumption |
≤ 72W |
|
Dimensions |
463*208*454mm(L*W*H) |
|
Gland |
1pcs M25*1.5；Explosion - proof gland（Ex d Ⅱc Gb/Ex tD A21 IP68） |
|
Installation Method |
Wall mounted or column platform installed |
|
Weight |
about 20Kg |
