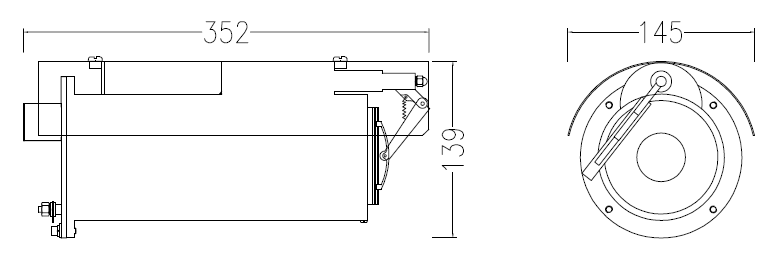

Product Size
|

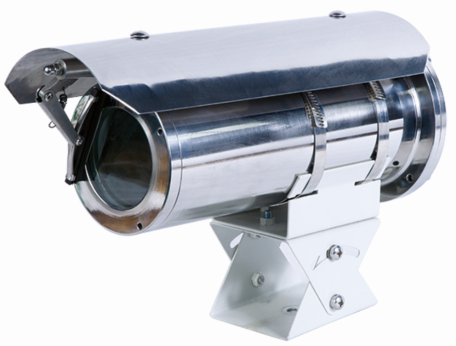

Model：HS0114
|

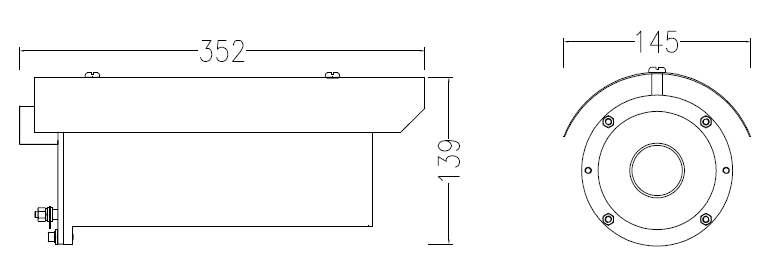

Model：HS0116
|

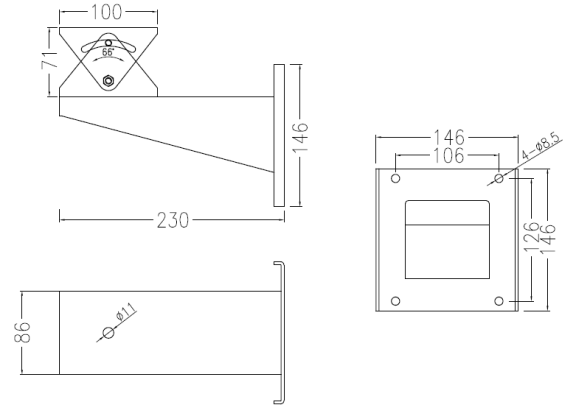

Mounting brackets
|
Model：HS0142
|
- 316L stainless steel material manufacturing, suitable for strong corrosive environment.
- IP68 waterproof, dustproof design, suitable for indoor and outdoor installation, round-the-clock use.
- Support network or analog camera, the maximum resolution 1920X1080, clear and fine image.
- The window using high - intensity , light transmission, optical quality glass.
- Intelligent wiper function, the wipers adopt windshield wipers, good weather resistance, easy to replace.
- Optical zoom, focusing fast and accurate.
- Fully functional: support user management .
- Modular circuit design ,support some common protocols such as pelco-d, pelco-p or mainstream network protocols, such as ONVIF.
- Support IO interface to connect other peripherals, 10/100m Ethernet interface; It also supports BNC coaxial and RS485 interfaces
- Low power consumption, small power loss, stainless steel shell heat faster, long time uninterrupted work.
|
Model |
|
|
|
Model |
HS0114 |
HS0116 |
|
IP Degree |
IP68 |
|
|
Camera |
|
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
|
Signal System |
PAL/NTSC |
|
|
Minimum Illumination |
color 0.05lux@1.6 |
|
|
Day & Night |
ICR |
|
|
WDR |
more than 52dB |
|
|
Shutter Time |
1/1 s to 1/30,000 s |
|
|
Resolution |
50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080) 50HZ:25fps(1280x720) 60HZ:30fps(1280x720) |
|
|
Lens |
|
|
|
Focal Length |
4.7-94mm，20 x optical zoom |
|
|
Aperture Range |
F1.6-F3.5 |
|
|
Angle of View |
61.4-2.9°(Wide-Tele) |
|
|
Minimum Working Distance |
10-1500mm(Wide-Tele) |
|
|
Zoom Speed |
Approx. 2.7s (Optical Lens, Wide-Tele) |
|
|
Focus Mode |
Auto focus / manual focus /once focus |
|
|
Day & Night |
Automatic / color / black and white |
|
|
PTZ function |
|
|
|
Wipers |
Smart wipers |
|
|
General Specification |
|
|
|
Temperature Range |
-40℃～60℃ |
|
|
Relative Humidity |
Less than 95%(+25°C) |
|
|
Atmospheric Pressure |
86kpa～106kpa |
|
|
Product Material |
316L Stainless steel |
|
|
Power Supply |
AC85V-265V |
|
|
Power Consumption |
≤ 36W |
|
|
Dimensions |
145*139*352mm（L*W*H） |
|
|
Gland |
1pcs M25*1.5 |
|
|
Installation Method |
Wall mounted or ceiling |
|
|
Weight |
About 9Kg |
