Product Size
|
Model：HS0117 with wall mounting
|

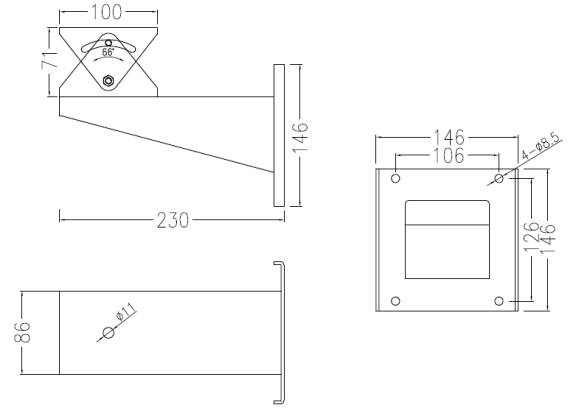

Mounting brackets
|
Model：HS0142
|
- 316L stainless steel material manufacturing, suitable for strong corrosive environment.
- IP68 waterproof, dustproof design, suitable for indoor and outdoor installation, round-the-clock use.
- Support network or analog camera, the maximum resolution 1920X1080, clear and fine image.
- The window using high - intensity , light transmission, optical quality glass.
- Fully functional: support user management .
- Modular circuit design ,support mainstream network protocols, such as ONVIF.
- Support IO interface to connect other peripherals, 10/100m Ethernet interface.
- Low power consumption, small power loss, stainless steel shell heat faster, long time uninterrupted work.
|
Model |
|
|
Model |
HS0117 |
|
IP Degree |
IP68 |
|
Camera |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS |
|
Lens |
4mm @F2.0 Horizontal field Angle 84°(6mm(54.5°),8mm(43°),12mm(26.5°)可选) |
|
Minimum Illumination |
color 0.05lux@1.6 |
|
Day & Night |
ICR |
|
WDR |
Digital WDR |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Max Resolution |
50Hz: 25fps @1920 × 1080 |
|
Network Function |
|
|
Interface Protocol |
ONVIF,PSIA,CGI,ISAPI |
|
Support Protocol |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP, |
|
Infrared Lamp (Optional) |
|
|
Infrared Distance |
30m |
|
Infrared Switch |
Illumination is less than 0Lux automatically turns on |
|
General Specification |
|
|
Temperature Range |
-20℃～60℃ |
|
Relative Humidity |
Less than 95%(+25°C) |
|
Atmospheric Pressure |
≥ 0.5Mpa |
|
Product Material |
316L Stainless steel |
|
Power Supply |
DC12V ± 10% / PoE (802.3af) |
|
Power Consumption |
3.5w , IR Max 12.5W |
|
Dimensions |
134*76*76mm (L*W*H) |
|
Gland |
2 x M18*1.5 |
|
Installation Method |
Wall mounted |
|
Weight |
1.2Kg |
