JUNCTION BOX SERIES

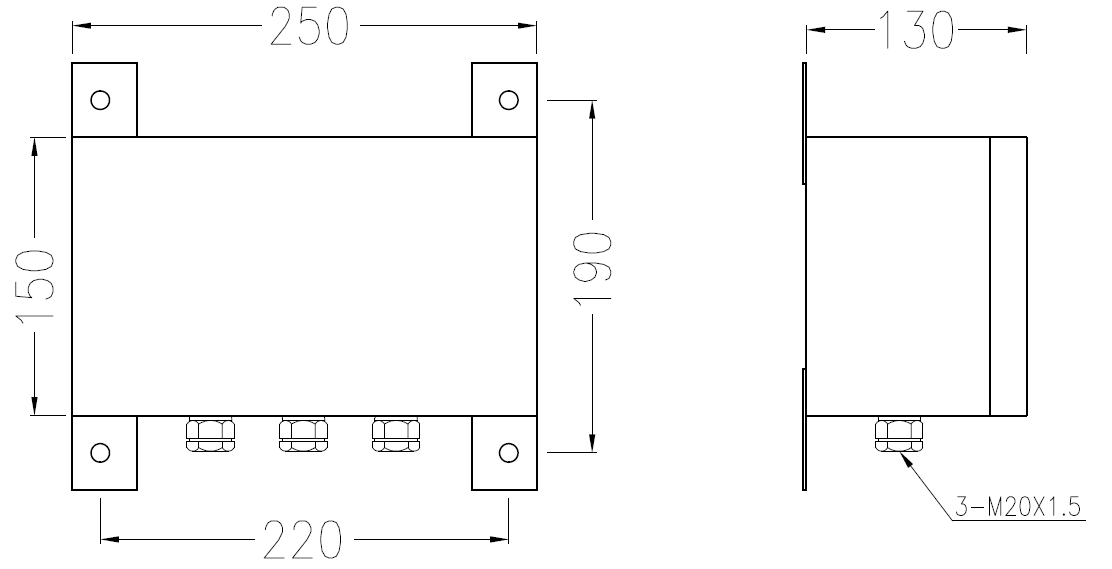

Product Size
|
|
- The housing is welded with stainless steel plate and has corrosion resistance, impact resistance and stainless steel fasteners.
- Number of internal terminals, cables outlet direction, quantity and thread specification can be customized according to special requirement.
- The sealing strip of the shell and shell cover is high temperature resistant and anti-aging silicon rubber.
|
Model |
HS0140 |
|
Product Material |
304 or 316L stainless steel |
|
IP Degree |
IP56 |
|
Operating Voltage (V) |
110VAC~240VAC 12VDC 24VAC (On demand) |
|
Working Current (I) |
≤3000mA |
|
Outlet Specifications |
M25*1.5 (customizable ) |
|
Number of Outlet Ports |
4/3/2 (customizable ) |
|
Dimensions |
267*267*204mm (L*W*H) |
|
Temperature Range |
-40℃～+60℃ |
|
Atmospheric Pressure |
80KPa～106KPa |
|
Relative Humidity |
Not more than 95% (no condensation) |
|
Installation Method |
Dressing, wall mounted |
|
Weight |
About 5Kg |
