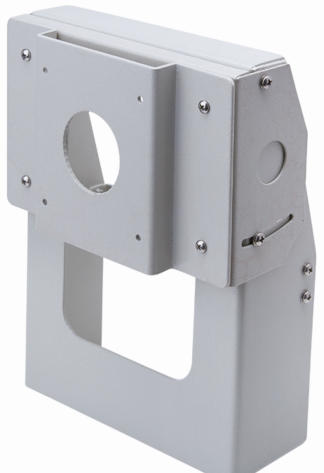

Monitor Installation Bracket

MOUNTING BRACKET

HS0143

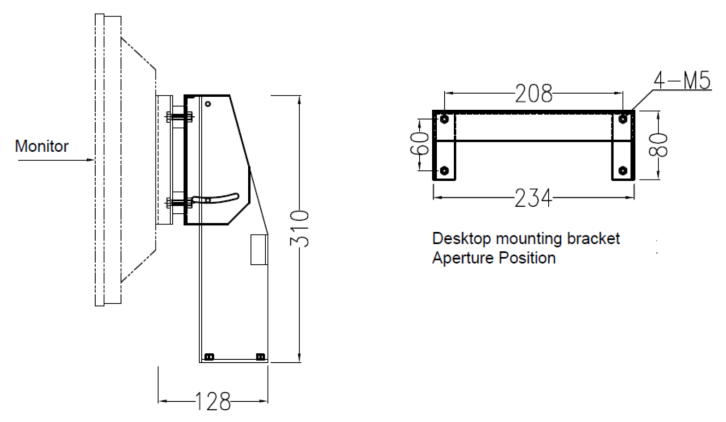

Dimensions

HS0143 dimensions

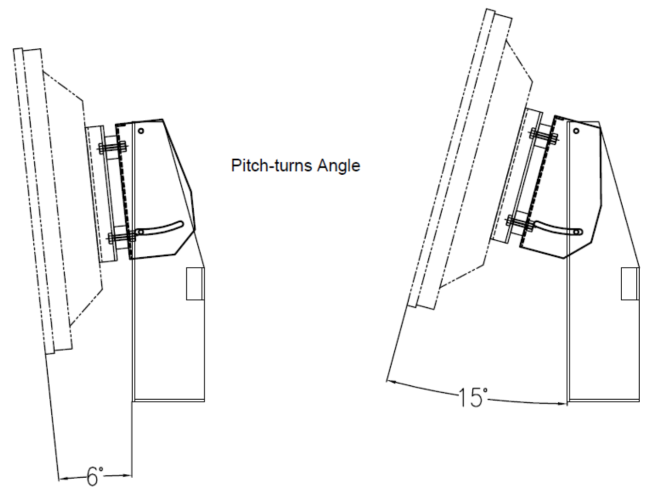

Flip Angle Diagram

HS0143 flip angle diagram

  • Applicable for 17-27 inch VESA standard monitor；
  • Angle can be reversed, elevation 0 ° ~ 15 °, depression angle 0 ° ~ 6 °；
  • Using stainless steel structure, the surface spray paint, with corrosion resistance, impact resistance；
  • Weight 4Kg；
  • desktop Installation, can be directly installed in any level of bearing surface, bearing 15Kg；
  • Easy to install and maintain。
