- DURABLE, CORROSION-FREE HOUSING
- COLOR OR B&W CAMERA
- COMPACT SIZE
- USES INCLUDE: HELMET MOUNT, MANIPULATOR ARM, HAND-HELD, DROP CAMERA, ETC.
|
Model |
|
|
|
Model |

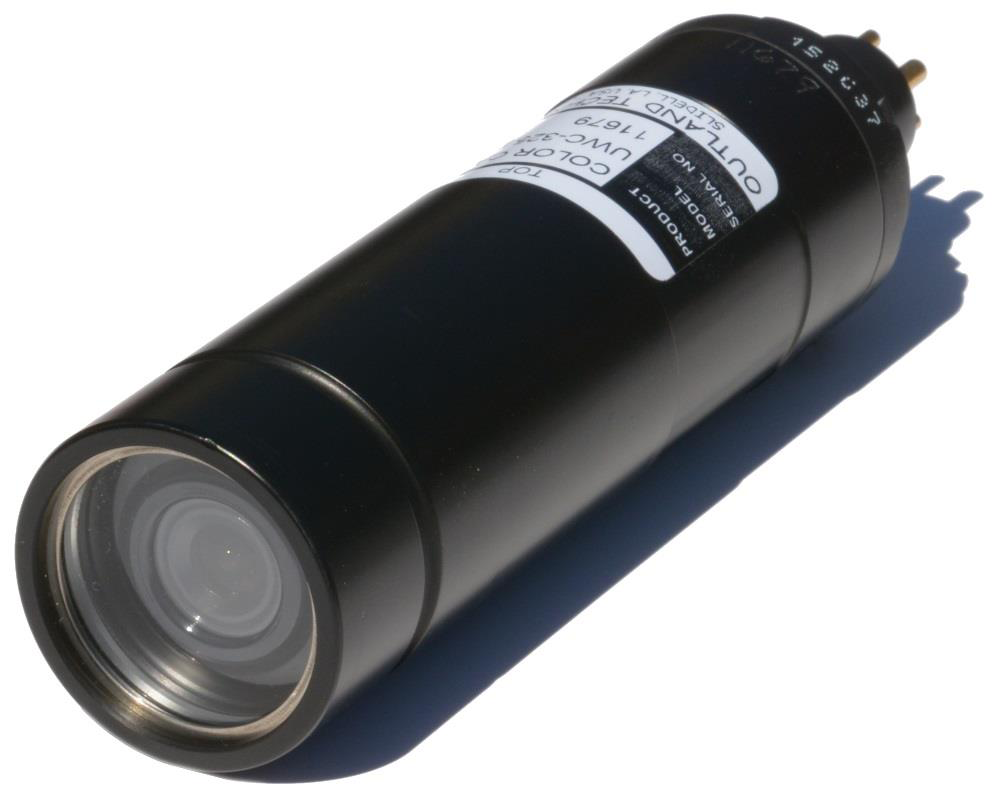

HS2001 (Black & White) |
HS2002 (Color) |
|
Image Device |
1/3” CCD Sensor 411,000 pixels |
1/3” DSP CCD Sensor 412,000 pixels |
|
Sensitivity |
0.0003 lux |
0.001 lux |
|
Resolution |
600 horizontal lines |
750 horizontal lines |
|
Lens |
3.6 mm, F1.2, E-Iris |
|
|
Zoom |
None |
|
|
Focus |
Fixed |
|
|
Standard Format |
NTSC |
|
|
Horizontal FOV |
70 degrees in water |
|
|
MECHANICAL |
|
|
|
Diameter |
1.62 in. (41 mm) |
|
|
Length (excluding connector) |
5 in. (127 mm) |
|
|
Weight in air |
9.8 oz. (0.28 kg) |
|
|
Weight in seawater |
3.1 oz. (0.09 kg) |
|
|
Depth Rating |
6560 ft. ( 2000 m) |
|
|
Housing Material |
Delrin |
|
|
Port Material |
Acrylic |
|
|
ELECTRICAL |
|
|
|
Input Voltage |
12-24 VDC |
|
|
Power 110 mA @ |
12 VDC |
|
|
CONNECTOR |
|
|
|
Standard Connector |
XSK-5-BCL |
|
|
Mate for Standard Connector |
RMK-5-FS 1. (White) Video 2. (Black) Ground / Common 3. (Green) Power (+) |
|
|
OPTIONS |
|
|
|
options |
1. CCIR (PAL) Format 2. Customer-specified connector |
